The benzodiazepine data set was generated by doing a PubChem search for the SMARTS query "C2(CN=C(C1=CC(=CC=C1N2[*])[*])C3=CC=CC=C3[*])=[*]" where the [*] are for the R-groups. The query pattern was generated by the PubChem sketcher, and the aromatic form without R-groups is "c1ccc2c(c1)C(=NCCN2)c3ccccc3".

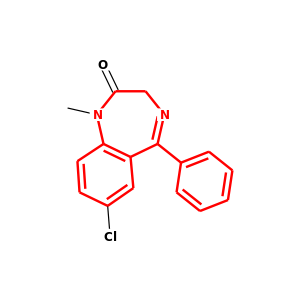

This task will extract a molecule from that data set and depict it with part of the substructure highlighted.

Implementation[edit | edit source]

Read record 3016 from the benzodiazepine SD file. Find all atoms which match the SMARTS "c1ccc2c(c1)C(=NCCN2)c3ccccc3" and highlight them in red. All other atoms must be drawn in black.

The resulting image should be 200x250 pixels and on a white background. The resulting image file should be in PNG (preferred) or GIF format.

OpenEye/Python[edit | edit source]

Prozac depiction with the OpenEye toolkits.

Output from OpenEye/Python

from openeye.oechem import *
from openeye.oedepict import *

# Find the structure matching the given title
def get_molecule_by_title(ifs, title):
    for mol in ifs.GetOEGraphMols():
        if mol.GetTitle() == title:
            return mol
    raise KeyError(title)

def do_layout_and_make_view(mol):
    # These operations may modify the structure
    OEAssignAromaticFlags(mol)
    OESetDimensionFromCoords(mol)
    OESuppressHydrogens(mol)
    OEAddDepictionHydrogens(mol)
    OEDepictCoordinates(mol)
    OEMDLPerceiveBondStereo(mol)

    view = OEDepictView(200, 250)
    view.SetSuperAtoms(False)
    view.SetAromaticCircles(False)
    view.SetAromaticDashes(True)

    view.SetColorOnBlack(False)
    view.SetBackColor(255, 255, 255)
    view.SetForeColor(0, 0, 0)

    view.SetShowHydrogens(True)
    view.SetDativeBonds(False)

    view.SetMolecule(mol)

    return view

# Set the color of each atom, as specified
def color_atoms(view, atoms, (r, g, b)):
    for atom in atoms:
        astyle = view.AStyle(atom.GetIdx())
        astyle.r, astyle.g, astyle.b = r, g, b

# Get the right molecule
ifs = oemolistream("benzodiazepine.sdf.gz")
mol = get_molecule_by_title(ifs, "3016")

# prepare it for depiction and make everything black
view = do_layout_and_make_view(mol)
color_atoms(view, mol.GetAtoms(), (0, 0, 0))

# Define the core pattern and make all matches red
core_subsearch = OESubSearch("c1ccc2c(c1)C(=NCCN2)c3ccccc3")
for match in core_subsearch.Match(mol, True):
    color_atoms(view, match.GetTargetAtoms(), (255, 0, 0))

# Render to an image and write the result as a GIF
img = OE8BitImage(view.XRange(), view.YRange())
view.RenderImage(img, True, 0, 0)

ofs = oeofstream("highlight_oe.gif")
OEWriteGIF(ofs, img)

OpenBabel/Rubabel[edit | edit source]

mol = Rubabel.foreach("benzodiazepine.sdf.gz").find {|mol| mol.title == "3016" }
mol.highlight_substructure!("c1ccc2c(c1)C(=NCCN2)c3ccccc3").remove_h!
mol.write("3016_highlighted.rubabel.png", u: true)

RDKit/Python[edit | edit source]

Mol 3016 depiction with the RDKit toolkit.

Output from RDKit/Python

from rdkit import Chem
suppl = Chem.SDMolSupplier('benzodiazepine.sdf')
tgt=None
for mol in suppl:
    if not mol: continue
    if mol.GetProp('_Name')=='3016':
        tgt=mol
        break

patt = Chem.MolFromSmarts("c1ccc2c(c1)C(=NCCN2)c3ccccc3")
# get the matching atoms:
matching = mol.GetSubstructMatch(patt)

from rdkit.Chem import Draw

# By default the RDKit colors atoms by element in depictions.
# We can turn this off by replacing the element dictionary
# in MolDrawing:
from rdkit.Chem.Draw import MolDrawing
from collections import defaultdict
MolDrawing.elemDict=defaultdict(lambda : (0,0,0))

Draw.MolToFile(tgt,'3016_highlighted.rdkit.png',size=(200,250),highlightAtoms=matching )


Cactvs/Tcl[edit | edit source]

Mol 3016 depiction with the Cactvs toolkit.

Output from Cactvs

set eh [molfile scan [molfile open benzodiazepine.sdf.gz r hydrogens add] "E_NAME = 3016" ens]
match ss -atomhighlight 1 -bondhighlight 1 c1ccc2c(c1)C(=NCCN2)c3ccccc3 $eh
prop setparam E_GIF height 250 width 200 bgcolor white atomcolor black format png filename 3016.png
ens get $eh E_GIF

The rendering uses the original coordinates from the SD file (unlike the OE example).

Btw: What does "Read record 3016" mean? If this is the record number, and not the record name, the script is:

set eh [molfile read [molfile open benzodiazepine.sdf.gz r record 3016 hydrogens add]]
match ss -atomhighlight 1 -bondhighlight 1 c1ccc2c(c1)C(=NCCN2)c3ccccc3 $eh
prop setparam E_GIF height 250 width 200 bgcolor white atomcolor black format png filename 3016.png
ens get $eh E_GIF
Rec 3016 depiction with the Cactvs toolkit.

Output from Cactvs

Cactvs/Python[edit | edit source]

First version with ID match:

e=Molfile('benzodiazepine.sdf.gz','r',{'hydrogens':'add'}).scan('E_NAME = 3016','ens')
match('ss','c1ccc2c(c1)C(=NCCN2)c3ccccc3',e,atomhighlight=True,bondhighlight=True)
Prop.Setparam('E_GIF','height',250,'width',200,'bgcolor','white','atomcolor','black','format','png','filename','3016.png')
e.get('E_GIF')

Second version with record selection:

e=Molfile('benzodiazepine.sdf.gz','r',{'record':3016,'hydrogens':'add'}).read()
match('ss','c1ccc2c(c1)C(=NCCN2)c3ccccc3',e,atomhighlight=True,bondhighlight=True)
Prop.Setparam('E_GIF','height',250,'width',200,'bgcolor','white','atomcolor','black','format','png','filename','3016.png')
e.get('E_GIF')

The output is again pixel-identical.

CDK/Java[edit | edit source]


CDK v1.5.12+ provides a new depict API simplifying image generation.










import org.openscience.cdk.CDKConstants;
import org.openscience.cdk.interfaces.*;
import org.openscience.cdk.io.MDLV2000Reader;
import org.openscience.cdk.isomorphism.Pattern;
import org.openscience.cdk.silent.SilentChemObjectBuilder;
import org.openscience.cdk.smiles.smarts.SmartsPattern;
import org.openscience.cdk.tools.manipulator.AtomContainerManipulator;

import java.awt.Color;
import java.io.FileInputStream;

public class Main {
public static void main(String[] args) throws Exception {

  String fname = "benzodiazepine.sdf";
  String sma   = "c1ccc2c(c1)C(=NCCN2)c3ccccc3";

  IChemObjectBuilder bldr = SilentChemObjectBuilder.getInstance();
  IAtomContainer     mol  = null;

  // XXX: use try-with-resources WIKIA doesn't syntax color if I do
  FileInputStream in   = new FileInputStream(fname);
  MDLV2000Reader  mdlr = new MDLV2000Reader(in);
  try {
    while ((mol = mdlr.read(bldr.newInstance(IAtomContainer.class))) != null) {
      if (mol.getProperty(CDKConstants.TITLE).equals("3016")) {
        break;
      }
    }
  } finally {
    mdlr.close();
  }

  AtomContainerManipulator.suppressHydrogens(mol);
  Pattern ptrn = SmartsPattern.create(sma, bldr);
  Iterable<IChemObject> hits = ptrn.matchAll(mol)
                                   .uniqueAtoms()
                                   .toChemObjects();

  DepictionGenerator dptgen = new DepictionGenerator();
  dptgen.withSize(200, 250)
        .withHighlight(hits, Color.RED);
  dptgen.depict(mol)
        .writeTo("~/3016.png");
}
}

CDK/Groovy[edit | edit source]

Record 3016 depiction with the CDK toolkit.

Output from CDK/Groovy

import java.util.List;
import java.awt.*;
import java.awt.image.*;
import java.util.zip.GZIPInputStream;
import javax.imageio.*;
import org.openscience.cdk.*;
import org.openscience.cdk.interfaces.*;
import org.openscience.cdk.io.*;
import org.openscience.cdk.io.iterator.*;
import org.openscience.cdk.layout.*;
import org.openscience.cdk.renderer.*;
import org.openscience.cdk.renderer.font.*;
import org.openscience.cdk.renderer.generators.*;
import org.openscience.cdk.renderer.visitor.*;
import org.openscience.cdk.renderer.generators.BasicSceneGenerator.Margin;
import org.openscience.cdk.renderer.generators.BasicSceneGenerator.ZoomFactor;
import org.openscience.cdk.silent.*;
import org.openscience.cdk.smiles.smarts.*;
import org.openscience.cdk.templates.*;
import org.openscience.cdk.tools.manipulator.*;

int WIDTH = 250;
int HEIGHT = 200;
// the draw area and the image should be the same size
Rectangle drawArea = new Rectangle(WIDTH, HEIGHT);
Image image = new BufferedImage(
  WIDTH, HEIGHT, BufferedImage.TYPE_INT_RGB
);
iterator = new IteratingMDLReader(
  new GZIPInputStream(
    new File("ctr/benzodiazepine.sdf.gz")
      .newInputStream()
  ),
  SilentChemObjectBuilder.getInstance()
)
iterator.setReaderMode(
  IChemObjectReader.Mode.STRICT
)
compound3016 = null
while (iterator.hasNext() && compound3016 == null) {
  mol = iterator.next()
  if ("3016".equals(mol.getProperty(CDKConstants.TITLE)))
    compound3016 = mol
}
compound3016 = AtomContainerManipulator.removeHydrogens(compound3016)
StructureDiagramGenerator sdg = new StructureDiagramGenerator();
sdg.setMolecule(compound3016);
sdg.generateCoordinates();
compound3016 = sdg.getMolecule();
// generators make the image elements
List<IGenerator> generators =
  new ArrayList<IGenerator>();
generators.add(new BasicSceneGenerator());
generators.add(new ExternalHighlightGenerator());
generators.add(new BasicBondGenerator());
generators.add(new BasicAtomGenerator());
selection = new AtomContainer();
querytool = new SMARTSQueryTool("c1ccc2c(c1)C(=NCCN2)c3ccccc3");
querytool.matches(compound3016);
if (querytool.countMatches() > 0) {
  mappings = querytool.getUniqueMatchingAtoms()
  mapping = mappings.get(0)
  for (int i=0; i<mapping.size(); i++) {
    selection.addAtom(
      compound3016.getAtom(mapping.get(i))
    )
  }
}
// the renderer needs to have a toolkit-specific font manager
AtomContainerRenderer renderer =
  new AtomContainerRenderer(generators, new AWTFontManager());
// the call to 'setup' only needs to be done on the first paint
renderer.setup(compound3016, drawArea);
model = renderer.getRenderer2DModel();
model.set(ZoomFactor.class, (double)0.5);
model.set(
  ExternalHighlightGenerator
    .ExternalHighlightDistance.class,
  (double)18
);
model.set(
  RendererModel.ExternalHighlightColor.class,
  Color.red
);
model.setExternalSelectedPart(selection);
// paint the background
Graphics2D g2 = (Graphics2D)image.getGraphics();
g2.setColor(Color.WHITE);
g2.fillRect(0, 0, WIDTH, HEIGHT);
// the paint method also needs a toolkit-specific renderer
renderer.paint(compound3016, new AWTDrawVisitor(g2));
ImageIO.write(
  (RenderedImage)image, "PNG",
  new File("CTR7.png")
);

Indigo/Python[edit | edit source]

Mol 3016 depiction with the Indigo toolkit.

Output from Indigo/Python

from indigo import Indigo
from indigo_renderer import IndigoRenderer

indigo = Indigo()
renderer = IndigoRenderer(indigo)

tgt=None
for mol in indigo.iterateSDFile("benzodiazepine.sdf"):
    if not mol:
        continue
    if mol.name()=='3016':
        tgt=mol
        break

query = indigo.loadQueryMolecule("c1ccc2c(c1)C(=NCCN2)c3ccccc3")
match = indigo.substructureMatcher(tgt).match(query)

if match:
    matching = match.highlightedTarget()
    matching.foldHydrogens() # Indigo does not change the representation of the hydrogens automatically
    matching.layout() # if not called, will be done automatically by the renderer

    indigo.setOption("render-output-format", "png")
    indigo.setOption("render-image-size", 200, 250)
    indigo.setOption("render-background-color", 1.0, 1.0, 1.0)

    renderer.renderToFile(matching, "3016_highlighted.indigo.png")
